| Product Name：8.7/15KV XLPE Insulation STA armoured Power Cable |
| Product Detailed： |
Model Number: YJ(L)V22 V(L)V22
Type: Insulated, High voltage
Application: Power Station
Conductor Material: Copper or Aluminum
Conductor Type: Stranded
Insulation Material: XLPE
Packaging & Delivery
Packaging Details:Packed in drums,cases or according to your requirement
Delivery Detail:Within 5-15 working days or according to your requirement
Application
It is used in power plant or power station ,it can be direct buried or in ground, it can bear external mechanical forces.
Construction

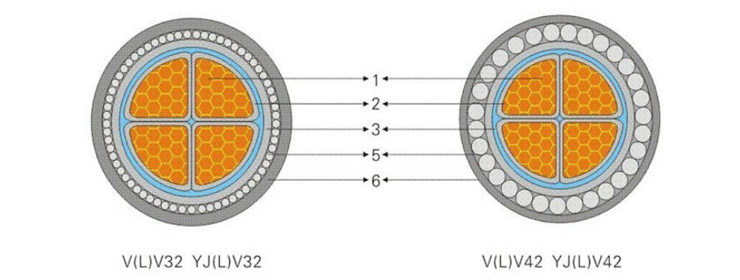

1.Conductor 2.Insulation 3.Inner sheath 4.Steel tape armoured 5.Steel wire armoured 6.Sheath
Technical data
Rated voltage:8.7/15KV
Highest working temperatue of conductor: 90°C
Laying temperature:above 0°C
Minimum bending radius:12D
Product description
|
Type
|
Description
|
Application
|
|
Cu
|
Al
|
|
YJV
|
YJLV
|
Copper-core(aluminum core)XLPE insulation and PVC sheath power cable
|
For laying indoor,in tunnels and in ducts,unable to bear external mechanical forces
|
|
YJY
|
YJLY
|
Copper-core(aluminum core)XLPE insulation and PE sheath power cable
|
|
YJV22
|
YJLV22
|
Copper-core(aluminum core)XLPE insulation steel tape armoured PVC sheath power cable
|
For laying indoor,in tunnels and in ducts,can able to bear external mechanical forces
|
|
YJV23
|
YJLV23
|
Copper-core(aluminum core)XLPE insulation steel tape armoured PE sheath power cable
|
|
YJV32
|
YJLV32
|
Copper-core(aluminum core)XLPE insulation steel wire armoured PVC sheath power cable
|
For laying in water or ground along route with large difference of level,can able to bear external mechanical forces
|
|
YJV33
|
YJLV33
|
Copper-core(aluminum core)XLPE insulation steel wire armoured PE sheath power cable
|
|
YJV42
|
YJLV42
|
Copper-core(aluminum core)XLPE insulation thick wire armoured PVC sheath power cable
|
|
YJV43
|
YJLV43
|
Copper-core(aluminum core)XLPE insulation thick wire armoured PE sheath power cable
|
|
|
|
|
|
Notes:
1.Ratproof,termite-proof,moisture-proof and other special requiremments cables are available.
2.The single core armoured cable are used for DC system only.As for AC system,non-megnetical materials shoule be used,its corresponding code is 62,63,72,73;
3.It is not recommended AL-core fire retardent cable.When there is a fire,flame temperatures may reach 700°C above due to the meilting point of aluminium is only 660°C,the conductor may be fused;
4.Flame retaradant/fire resistant power cable are available:Representation method of flame retardant grade is the "Z" followed by"A","B","C",such as the "ZA","ZB","ZC".When "ZR" expressed,generally considered to be "C" class of flame retardant.Flame retardant level representation is "ZN" middle "A","B","C",such as the "ZA","ZB","ZC".While using "NH" expressed,it generally considered to be "ZCN".For example;
|
|
|
