Industry Application Case: How RF Jumper Cables Connect Cellular Base Station Systems
Published On: October 16, 2026
Application: Cellular Base Stations and Wireless Communication Networks
Product Focus: RF Jumper Cables, Coaxial Cables and RF Connectors
Cellular base stations play an essential role in modern wireless communication networks. They transmit and receive radio frequency (RF) signals between network equipment and antennas, supporting mobile communications, data transmission and network coverage.
A typical base station cabling system includes antennas, main feeder cables, RF jumper cables and radio equipment. Although each component serves a different purpose, their connections must work together to maintain reliable signal transmission.
RF jumper cables provide flexible connections between the main feeder system and antenna ports or radio equipment. Their flexibility helps accommodate equipment layouts, installation space limitations and connection requirements.
During base station installation, several factors can affect the selection and arrangement of RF jumper cables.

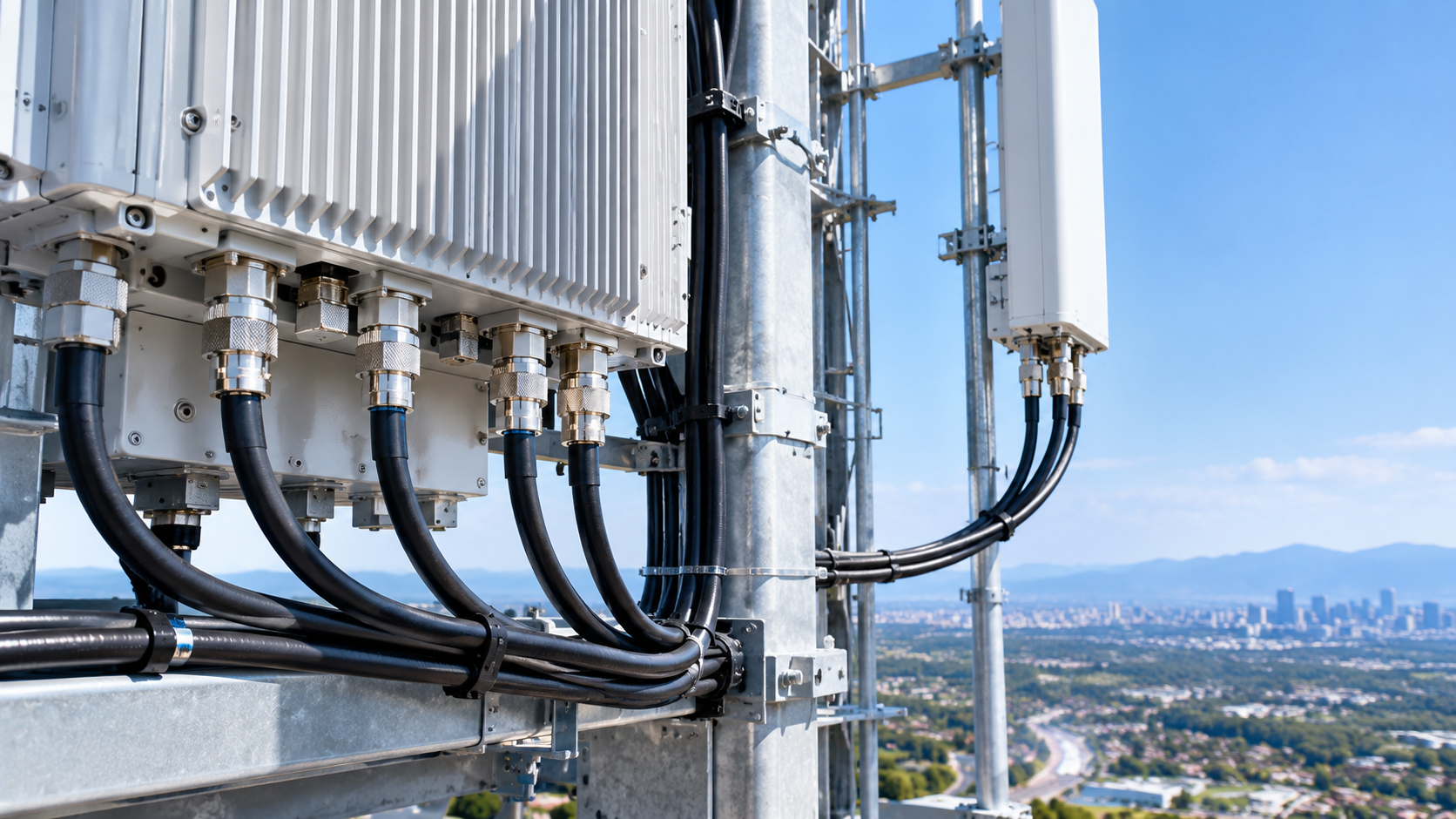

Antennas, radio units and cable interfaces are often installed close together on towers or mounting structures. Jumper cables must accommodate the available space without excessive bending or unnecessary tension on connectors.
Loose connections, damaged connector interfaces or improper installation can affect signal transmission and may allow moisture to enter outdoor connections. Appropriate connector selection and correct assembly are therefore essential.
Every additional cable section and connection contributes to the overall transmission characteristics of the system. Cable length, frequency range, connector quality and installation conditions should be considered when planning the RF path.
Outdoor base stations may be exposed to rain, temperature changes, ultraviolet radiation and wind. Cables and connectors must be suitable for the intended environment, with appropriate weatherproofing where required.
A typical base station connection may follow this arrangement:
Radio Equipment → RF Jumper Cable → Main Feeder Cable → Antenna
The exact configuration depends on the network architecture. In some modern installations, radio units are mounted close to the antennas, allowing shorter RF jumper connections. Other systems may use different feeder and antenna arrangements.
RF jumper cables provide the flexibility needed to connect equipment interfaces while helping installers organize cable routes around mounting brackets and other structures.
For example, 1/2-inch corrugated coaxial jumper cables are used in various wireless communication applications. Depending on the system design, they can be assembled with N-type or 7/16 DIN connectors to match the equipment interfaces and required RF performance.
The cable impedance, operating frequency, power-handling requirements, connector interface and environmental specifications should be confirmed before selecting a suitable assembly.
Proper installation is as important as selecting the correct cable.
- Check connector compatibility: Confirm the connector type, gender and interface dimensions before installation.
- Follow the specified bend radius: Avoid sharp bends, twisting or excessive pulling that could damage the cable structure.
- Secure the cable route: Use suitable supports and clamps to reduce mechanical stress and prevent cables from hanging under their own weight.
- Protect outdoor connections: Apply appropriate weatherproofing methods to exposed connector interfaces according to the installation requirements.
- Inspect the completed connections: Verify that connectors are correctly installed and tightened according to the manufacturer's instructions. RF testing can be performed where required by the project specification.
These practices help reduce installation-related problems and support consistent RF system performance.
When properly selected and installed, RF jumper cables help simplify connections between feeder systems, antennas and radio equipment.
Their flexible construction supports practical cable routing, while compatible connectors provide the interfaces required by the equipment. Careful cable selection and installation also help control additional signal loss and reduce unnecessary maintenance caused by connection or routing issues.
For network operators and system integrators, considering the complete RF connection path during the design stage can make installation and future maintenance more manageable.
United Wiring Co., Ltd. manufactures coaxial cables, RF jumper cable assemblies, RF connectors and other cable products for communication and connectivity applications.
Our product range includes 1/2-inch RF jumper cables with connector configurations such as N-type and 7/16 DIN, subject to the specific model and requirements.
We work with customers to review cable specifications, connector interfaces, cable lengths and application conditions to identify suitable solutions for their projects.
For cellular base station installations, DAS networks and other RF connectivity applications, selecting the right jumper cable assembly is an important step toward building a reliable cable infrastructure.
Contact United Wiring to discuss your RF jumper cable requirements and request product specifications for your application.
Note: This article describes a typical industry application scenario based on common wireless communication cabling practices. It is intended as a technical application reference and does not describe a specific customer project completed by United Wiring.
