Leaky Feeder Systems for Underground and Tunnel Communication

Reliable wireless communication can be difficult to maintain in underground facilities and tunnels. Concrete structures, rock formations, metal equipment, and long enclosed routes can significantly weaken conventional radio signals. Leaky feeder systems provide an effective solution by combining RF signal transmission with distributed wireless coverage along the communication route.

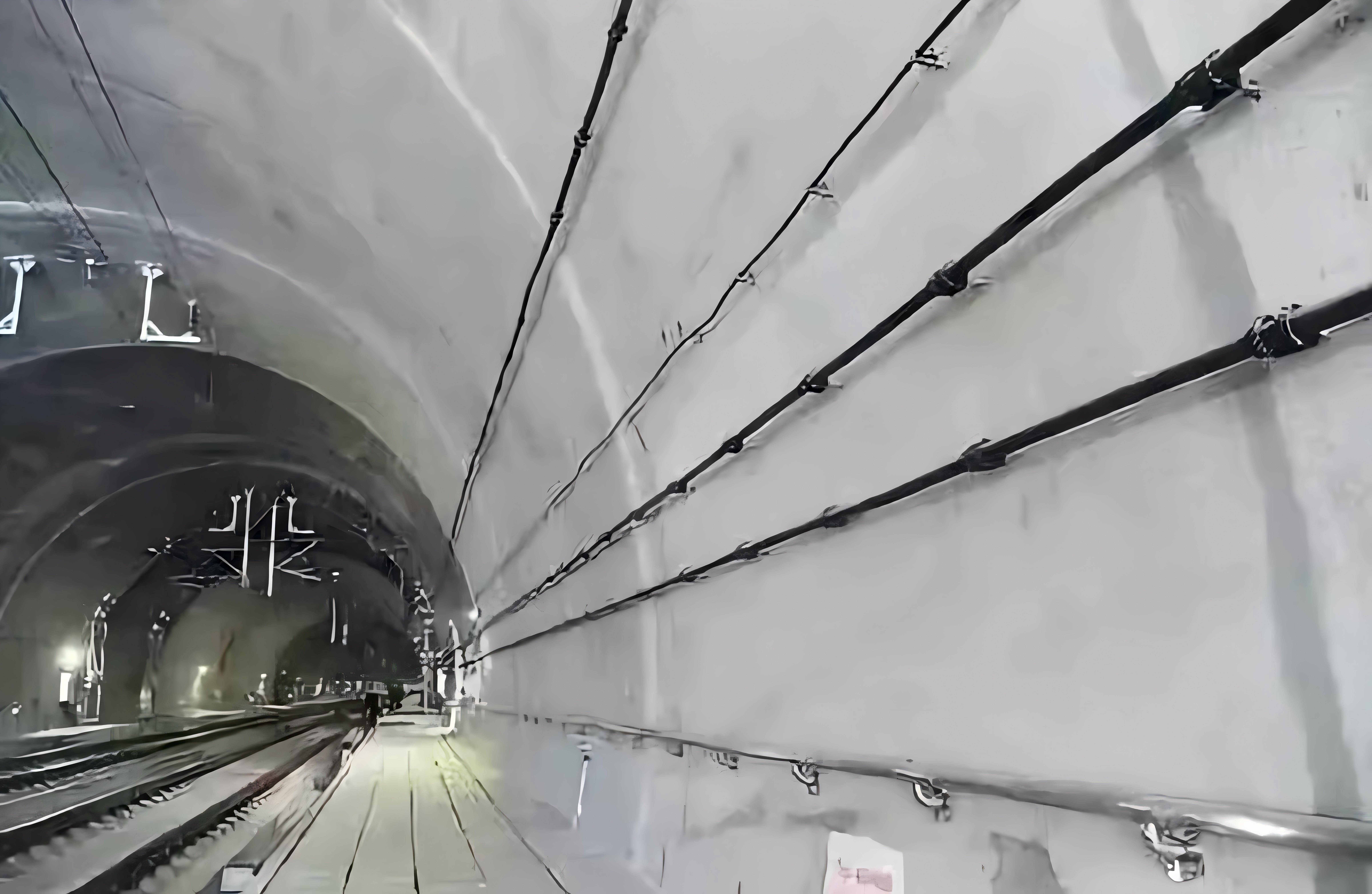

A leaky feeder system typically consists of a radio or signal source, amplifiers or repeaters, splitters and couplers, and leaky feeder cable. The cable is installed along tunnels, mine roadways, or other defined routes and acts as both a transmission line and a distributed antenna.

Unlike conventional coaxial cable, which is designed to minimize electromagnetic radiation, leaky feeder cable incorporates controlled openings or specially designed structures in its outer conductor. These features allow a portion of the RF energy to couple into the surrounding area as the signal travels along the cable.

The result is a continuous or relatively uniform coverage zone along the cable route. Wireless devices located near the cable can communicate with the radio system without requiring a separate antenna at every coverage point.

Because RF signals also experience attenuation as they travel through the cable, long systems may require amplifiers or repeaters to compensate for signal loss and maintain adequate coverage. System design therefore needs to consider cable attenuation, operating frequency, coupling loss, system length, amplifier spacing, and the required coverage level.

Leaky feeder systems are widely associated with environments where conventional wireless propagation is difficult.

• Underground Mines: In mining environments, leaky feeder systems can support voice communication, operational coordination, emergency communication, and communication with vehicles or personnel working underground.

• Railway and Metro Tunnels: They can provide radio coverage for train operations, maintenance teams, emergency services, and other communication requirements along long tunnel sections.

• Road Tunnels: Highway and urban tunnels may use leaky feeder systems for radio communication, public safety services, emergency response, and operational communications.

• Other Enclosed Facilities: Similar systems can be considered for underground parking areas, industrial facilities, utility tunnels, and other locations where structural obstacles make conventional antenna deployment challenging.

A reliable leaky feeder system requires more than simply installing cable along a tunnel. Engineers need to evaluate the required frequency range, cable attenuation, coupling characteristics, tunnel geometry, installation environment, coverage distance, and available RF power.

Mechanical and environmental requirements are also important, particularly in mines and transportation tunnels where cables may be exposed to moisture, dust, vibration, temperature changes, mechanical impact, or other harsh conditions.

By providing controlled RF distribution along a physical route, leaky feeder systems offer a practical approach to wireless communication in underground and tunnel environments where conventional wireless coverage may be difficult to achieve.
